To provide technical knowledge and install production lines of lightweight concrete, Arata Beton Mehr Padin Co. has contributed to the innovation of various stages of the production of the blocks of foam concrete. The most important of these innovations has been in designing the mold for producing the blocks with male and female heads, commercially called PERELEX . Furthermore, the employment of foam generators at low pressure and using an automatic process has significantly improved the product quality and production rate.

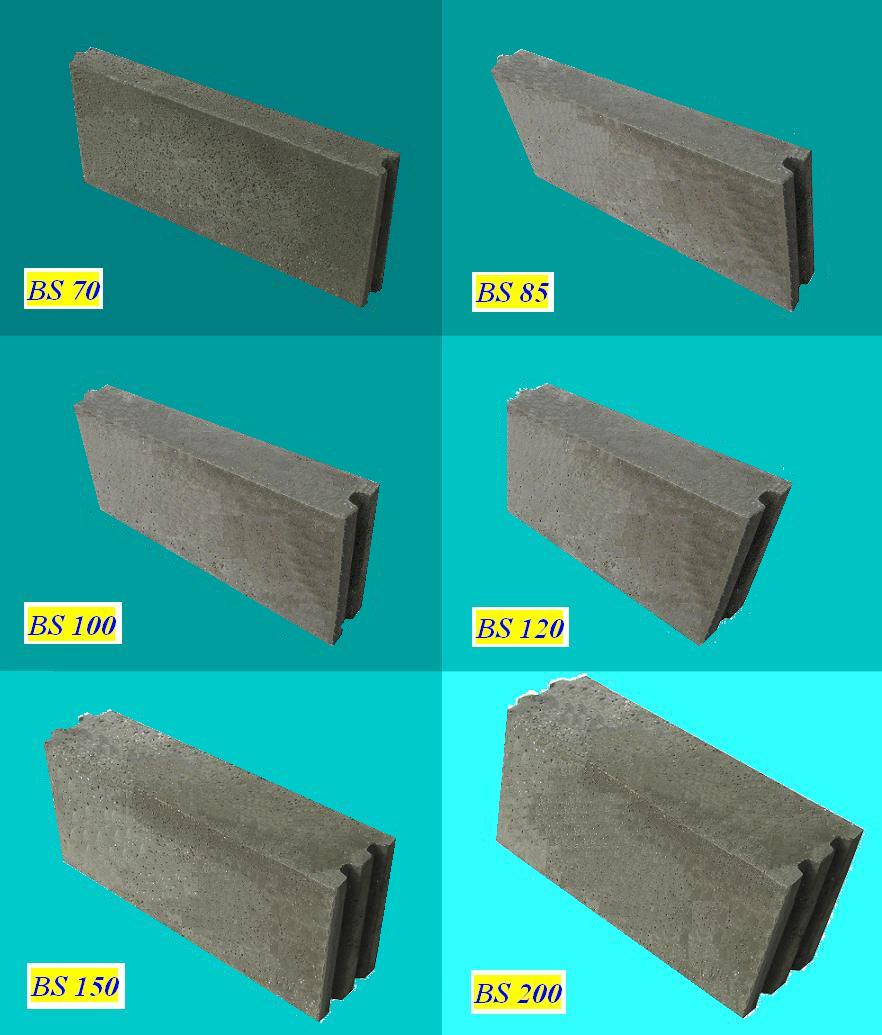

PERELEX Cellular lightweight concrete block
A lightweight concrete block with male and female heads
Annually more than 6 billion cube meter of concrete is produced worldwide and this amounts to one cube meter of concrete for each person. No other industrial product has such a huge production volume in the world. Meanwhile lightweight concretes, as new engineering materials, own special characteristics such as one forth of the weight of common concretes, heat insulation, sound insulation, and resistance against earthquake. As a result of these merits, they have found special position in world constructions. We are proud to introduce PERELEX, the lightweight concrete block with male and female heads, to engineers, contractors, and other industrial coworkers.
· Light Weight Thanks to the employment of world-class high technology and advanced production process, PERELEX is a very lightweight product. This fact leads to the reduction of the profile of skeletons while increasing their structural resistance against the destructive power of earthquakes.
· Male and Female Heads The existence of male and female heads in each block results in the appropriate mechanical connection of two such blocks. Lack of this property in similar products has witnessed many implementation problems including extra installation expenses as a result of the employment of more mortar. Further, male and female heads improve heat isolation of walls. This is not a characteristic of Aerated Autoclaved Concrete (AAC) blocks and similar products which are manufactured using cutting process.
· Resistance to Crack and Falling Thanks to the existence of polypropylene threads, in the events of earthquake, impact or temperature variations, the probability of crack and falling is reduced. This is not a characteristic of AAC blocks and similar products which are manufactured using cutting process.
· Heat Insulation Thanks to the porosity and their many embodied tiny air bubbles, PERELEX blocks are one of the best heat isolators in building constructions. Researches by American officials show a 32 percent saving of expenses in the design and installation of heat isolation systems and considerable energy efficiency.
· Sound Insulation Thanks to the existence of special raw materials in its mix design and the way embodied air bubbles are distributed in it, a PERELEX block is a very good sound isolator and considered so by some international standards, and specially the American ones, and used for sound isolation purposes.
· Economical and Installation Time Advantages Being equipped with male and female heads, having proper dimensions and simple installation speed up installation magnificently. Moreover, the absence of waste (including that of transportation and installation), being light, low consumption of mortar, and thin width of wall layer as a result of no deflection, on top of many other merits compared to similar products, result in considerable saving of construction expenses.
· Fire Resistance In the event of fire and high temperatures, the existence of porosity and polypropylene threads lets gases exit. Therefore there would be no destruction and breaking mechanism and explosion behaviour would be moderated considerably. As a result, PERELEX is regarded as a “fire wall” and have important applications in critical public places such as hospitals, hotels, educational institutes, etc.
· Water Absorption, Cementing and Stone-Fixing Proper water absorption in lightweight PERELEX blocks allows efficient and simple cementing and installation of stones and tiles on them.
· Workability PERELEX blocks can be easily sawed, drilled, or carved to provide passages for mechanical and electrical installations, enjoying a very high workability.
· Humidity Isolation As a result of the employment of special raw materials and high technology of the production process of PERELEX blocks, they show such a very good humidity resistance that accords with current international standards for humidity isolation.
· Economical Transportation The regular and precise geometric shapes of PERELEX blocks and their low density allow the transportation of bigger volumes with lower weights compared to similar products.
· Endurance and Non-distractive Characteristic Thanks to the ingredients of PERELEX blocks, they will not spoil. Moreover, the growth of fungous and other micro organisms in them is impossible and no insects will not nest nor lay eggs in them. Further, the blocks have excellent life endurance and show no characteristic variations. Their PH is 7, insuring resistance against chemicals, too.
· Environmental Consistency Research results show that PERELEX blocks and their production process, which is in turn based on clean energies, are perfectly consistent with environment so that they does not harm the environment and produce no pollutants or non recyclable materials.
· Accordance with Paragraphs 18 and 19 and Respecting National Building Standards of Iran Compressive strength of PERELEX blocks is more than 30 Kg/cm2 which is more than the requirements imposed by the national standard No. 7782 for non-structural separating wall blocks. The heat transfer coefficient of PERELEX blocks, being less than 0.14 W/m.K, accords with Paragraph 19 of National Building Rules, and its sound isolation accords with Paragraph 18 of it.
Technical Specifications of PERELEX Blocks:
Heat Transfer Coefficient: 0.14 W/m.K
Dry Shrinkage Coefficient: 0.05-0.07%
Density: 700-750 kg/m3

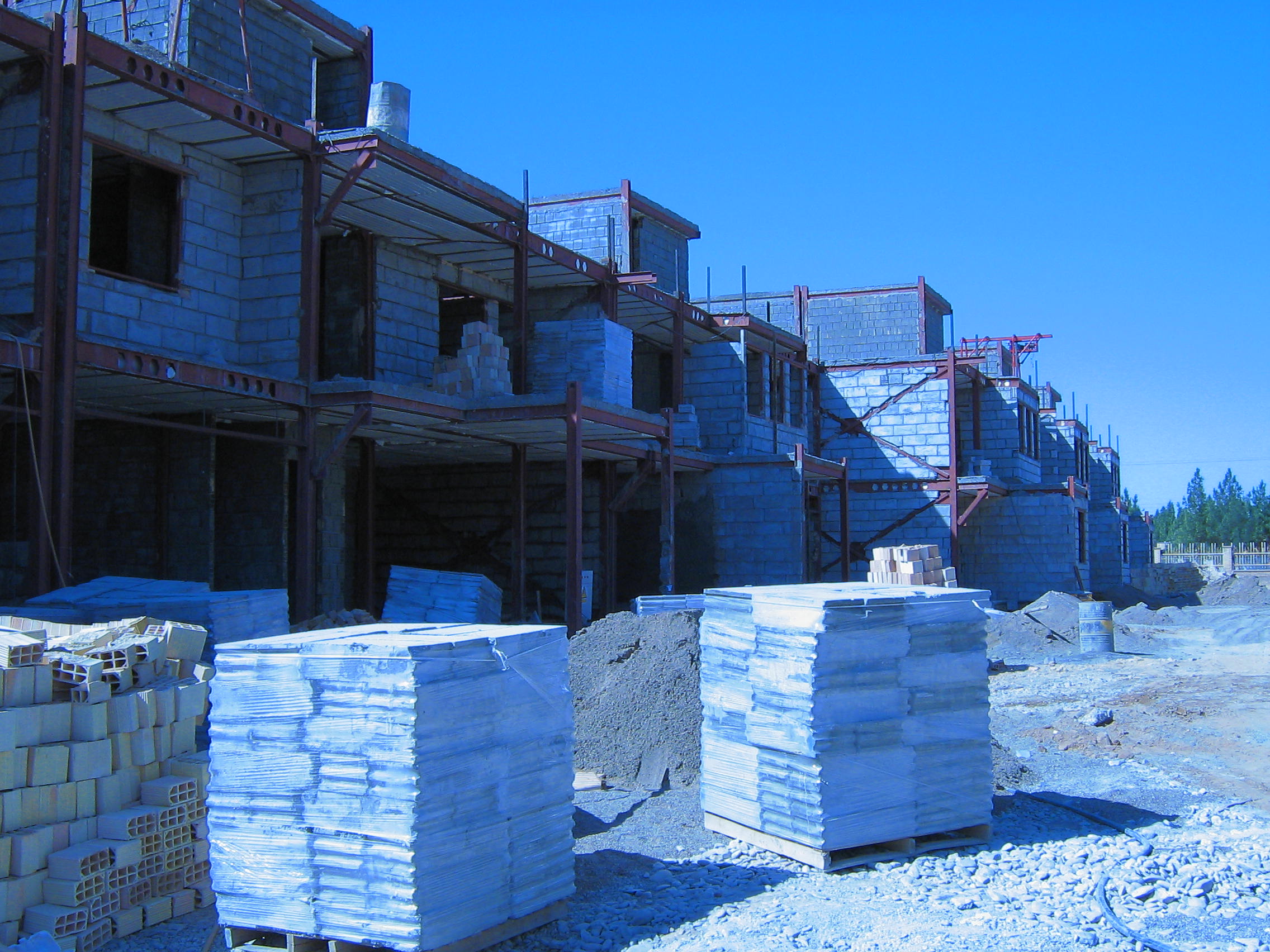

Installation Procedure
Considering the fact that the blocks have been inherently made out of common concrete, for their installation common cement mortar can be used. Since the thickness of the corresponding mortar is low and about 5mm, use mixture of fine sand and cement. The dimensional precision of the blocks have resulted in reducing the consumed mortar as low as gluing and obtaining highly smooth and level surfaces which serve final operations using thin mortar layer. Where the wall is not exposed to water or humidity conditions, gyps mortar can be used, too. If smaller parts are required in operation and installation, sawing can be done using hand or electrical devises.
Future Objectives and Targets of the Company
- Providing the technology of lightweight concrete.
- Providing information and inspiration for using lightweight concrete.
- Offering consultation for operation and consumption of products with lightweight concrete.
- Production of lightweight concrete and concrete parts specially lightweight blocks for roofing and prefabricated walls.
PERELEX, A lightweight concrete block with male and female heads
Head Office:
Unit No. 143, 2rd floor, Berjis International Complex,
Tel: (+98) 511 7247285
Fax: (+98) 511 7247386
Website: www.aratabeton.com
Email: aratabeton@yahoo.com
Our company supplies foaming equipment, chemicals and technical support for foamed lightweight concrete blocks, panels, floor screeds, roof insulation screed etc.
We are Iranian company and have been supplying the technology for the production of lightweight foamed concrete, locally & worldwide.
We mainly do;
1) supply of foam generators & mixers.
2) supply of foaming chemicals.
3) training and technical assistance.
Other ancillary equipment to start production including, air compressors, mould system, mixers, pumps, are also available. Whole plant setup & other equipment needed for full scale plant can be obtained under our Technical Assistance program.
However our technology is not just about equipment & chemicals but also know how & method in producing quality foam concrete. Therefore we place heavy emphasis on training & consultancy (Technical Assitance) especially for start-up, small & medium scale production and also for large scale plants.
Our methods of producing foam concrete is exclusive & tailored towards simplicity with low capital investment much lower than other similar systems or AAC (autoclaved aerated) plants. Our main equipment is user friendly, easy to install & maintain and available in various capacities depending on your budget. Most important, all our plants are designed to be mobile & can be dismantled or moved easily to another project location.
We also can send our basic equipment economically (since its portable & lighter than most other) to any part of the world.
In order for us to, advise you on the suitable equipment, chemical & type of technical assistance, please let us know about;
A) the type of product that you are planning and its intended application.
B) Its approximate size, weight or density.
C) The volume of production daily or monthly in terms of product numbers or cubic meters foam concrete.
If you need more information call ( + 98 511 7247285) or fax to ( +98 511 7247386)
Some of the areas where we can help you is in making;
A) blocks for wall construction.
B) panels for wall & fence construction.
C) geotechnical void filling, apron construction and road abutments.
D) architectural cornices, window sills and hood / canopy.
E) floor fill for level screed or insulation.
How Foam Generator work?
One of the most important ingredient required to produce foamed concrete is the aqueous stable foam.
The foaming generator acts as a medium which transforms the liquid chemical into stable foam. Foaming generators comes in many sizes depending on the ability to hold and transform liquid chemical into foam.
As an example , one would need about 500 liters of foam to make 1cubic meter of foamed concrete @ about 1100 kg/m3 density.
In order to make 500 liters foam , one has to dilute say 1 liter of chemical foaming agent in 19 liters of water and subsequently transform this 20 liters of premix solution into 500 liters of foam using the generator.
As you can see, the expansion rate is 25 times (550/20). We can increase this expansion rate by introducing more air but this will degrade the quality of the foam. Therefore the capacity of a foaming generator will depend very much on its ability to hold and pump out maximum amount of foam.
The typical foam generator runs from an air compressor and consists of a holding (filler) tank, foaming unit and a lance unit. The purpose of the holding tank is to hold the diluted foaming agent and subsequently deliver it through a foaming unit and lance. It is normally in a the form of a pressurised tank and needs to be closed tight for operation. The volume of foam obtained from such a system depends very much on the size of these tanks. For large volumes it is impractical to use the tank system since it is bulky to carry about. Large capacity holding tanks are heavy and cumbersome for smaller scale on site production. They are also attached to the foaming unit and lance in such a way that it would be virtually impossible to detach it for future modification.
Some foaming generators do not use a pressurized holding tank and makes use of a pneumatic or electric driven system to produce the stable foam. These generators are more versatile and are able to produce foam continuously. The are better suited to medium to large prodcution of foamed concrete.
Production of Foamed Concrete
The production of foamed concrete on a small scale is a fairly easy process which does not involve any expensive or heavy machinery and in most cases uses equipment that is already available for normal concrete/mortar production.
Depending on the volume of concrete required (normally limited to less than 20 cubic meters/day) one will only need ;
Equipment
1. Normal concrete/mortar mixer or special mixers for foam concrete.
3. Formwork (if producing pre- cast components)
Materials
1. Fine sand
2. Cement
3. Water
4. Stable foam
Simple Mix Design
The first step is of course to decide the wet density and how much foamed concrete you require.
Say volume of foamed concrete required = 0.5m3
Wet density of foamed concrete required = 1000 kg/m3
The raw materials required would be ;
cement = 200 kg
sand = 200 kg (assuming dry sand)
water = 100 kg (including water in foam)
then from the target volume of foamed concrete (0.5m3) calculate the air content and final foam volume in the mix.
|
foam content in mix = 0.25 m3 ( 250 liters ) |
If foam output = 1.5 lit/sec then one would need to pump generator for 250/1.5 = 2.77 min. The practical way would be to pump for 166 sec and add the rest of the foam using a measured container.
Mixing procedures
Now that you have worked out the amount of materials required to make the foam concrete add them dry first starting with the sand and cement. Mix dry constituents for a few minutes and add water in stages and make sure the mixing is thorough. Then add foam to the wet slurry and ensure foam has been completely mixed with the mortar.
After mixing is completed check that the wet density of the foamed concrete is close to what is required. The dry density (oven dried) of foamed concrete is normally less than its wet density, depending on w/c ratio, density and also on the cellular structure obtained. So do not forget to target a value of wet density much higher than what we actually require (dry).
